Optace Networks

72,000 KES Excl VAT

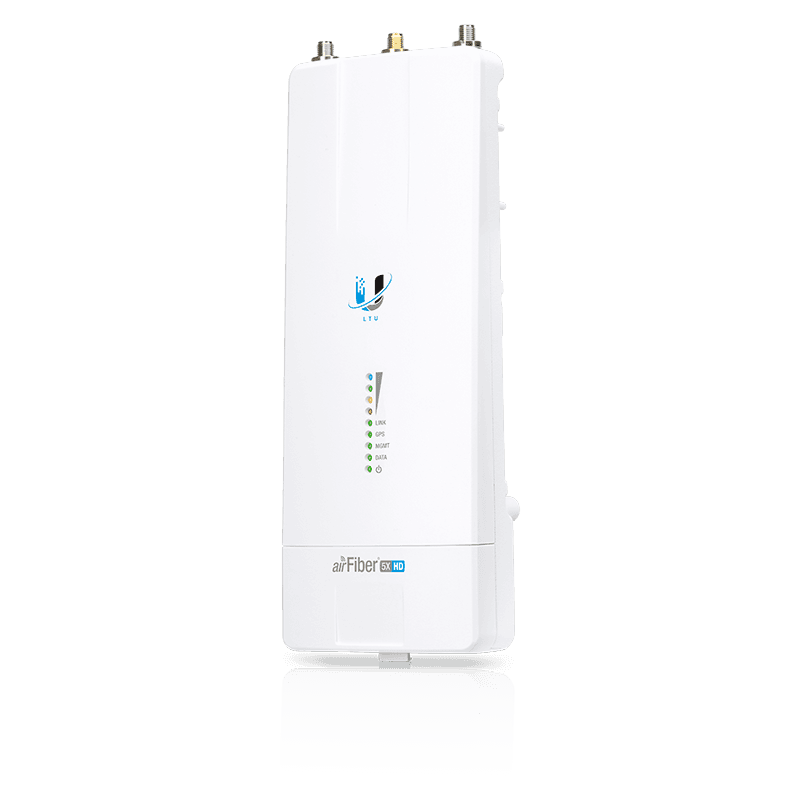

Ubiquiti Networks airFiber 5XHD

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing airFiber® XHD a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas.

Complete Custom Hardware for the WISP, right down to the Silicon

Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.

Game-Changing LTU Technology

Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

Industry Leading Complete Software Suite

IP-67 Durability

airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

Specifications
Dimensions	224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight	0.35 kg (0.77 lb)
GPS	External, Magnetic Base
Operating Frequency	5150-5250MHz 5740-5850MHz
Power Supply	24V, 1A PoE Gigabit Adapter (Included)
Power Method	Dual Passive Power over Ethernet
Maximum Power Consumption	12W
Supported Voltage Range	20-50VDC
Mounting	airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
Certifications	FCC
Operating Temperature	-40 to 55° C (-40 to 131° F)
INTERFACE
Data Port	(1) 10/100/1000 Ethernet Port
Configuration Port	(1) 10/100/1000 Ethernet Port
SYSTEM
Processor	LTU IC
Maximum Throughput	1+ Gbps
Maximum Range	200+ km (Throughput and range values may vary depending on the environmental conditions)
Encryption	128-bit AES
Operating System	airOS F
RADIO FREQUENCY
Max TX Power	29 dBm (Dependent on Regulatory Region)
Frequency Accuracy	± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization
Channel Bandwidth	10/20/30/40/50/60/80/100 MHz Selectable _{Programmable Uplink and Downlink Duty Cycles}
