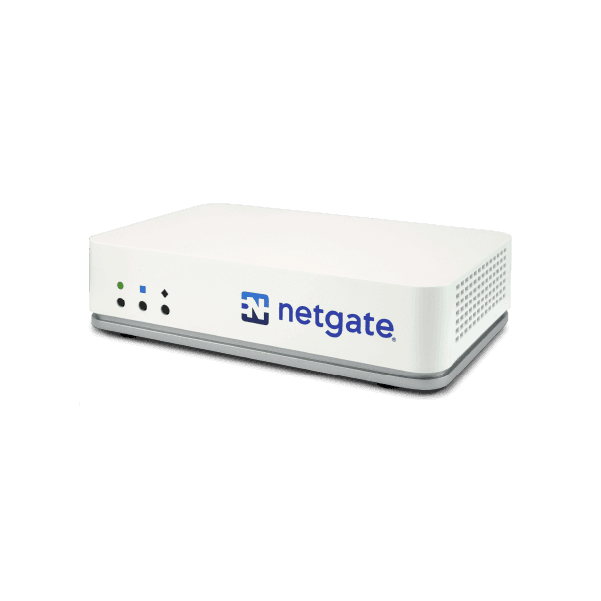

Netgate 2100 Max pfSense+ Security Gateway

Pound-for-pound, the Netgate® 2100 security gateway appliance with pfSense® Plus software delivers unbeatable performance and flexibility in its class. It is ideal for home, remote worker, and small business deployments that require more compute resources to support the use of multiple pfSense add-on packages and VPN performance to support multiple user- and site-to-site connections. Featuring a Dual core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4GB of DDR4 RAM, and upgradeable storage. The 2100 has additional expansion slots available for DIY LTE, Wi-Fi or M.2 SSD expansion.

CPU	Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
CPU Cores	Dual Core
Networking	One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo) Four 1 Gigabit Ethernet LAN ports (Marvell 88E6141 switch) LAN ports can be repurposed for additional WAN ports
Storage	128 GB M.2 SATA 2242 SSD (not NVMe compatible)
Memory	4 GB DDR4 (not expandable)
Expansion	1x M.2 'B' key sockets (SSD, LTE) 1x miniPCIe (WiFi) microSIM slot
Console Port	MiniUSB (console cable included)
USB Ports	1x 2.0 port
LED	3 full color RGB LEDs (Pattern info here)
Enclosure	Desktop 1.7" (42.2 mm) tall x 4.25" (108 mm) deep x 6.8" (172.7 mm) wide with integrated keyholes for wall mount
Cooling	Passive
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector AC Inlet: IEC320-C7 (2 PIN) One US, UK, EU or ANZ power cord included US Power Cord: NEMA 1-15P to IEC320-C7 UK Power Cord: BS 1363 to IEC320-C7 EU Power Cord: CEE7/16 to IEC320-C7 ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	32°F (0°C) to 122°F (50°C)
