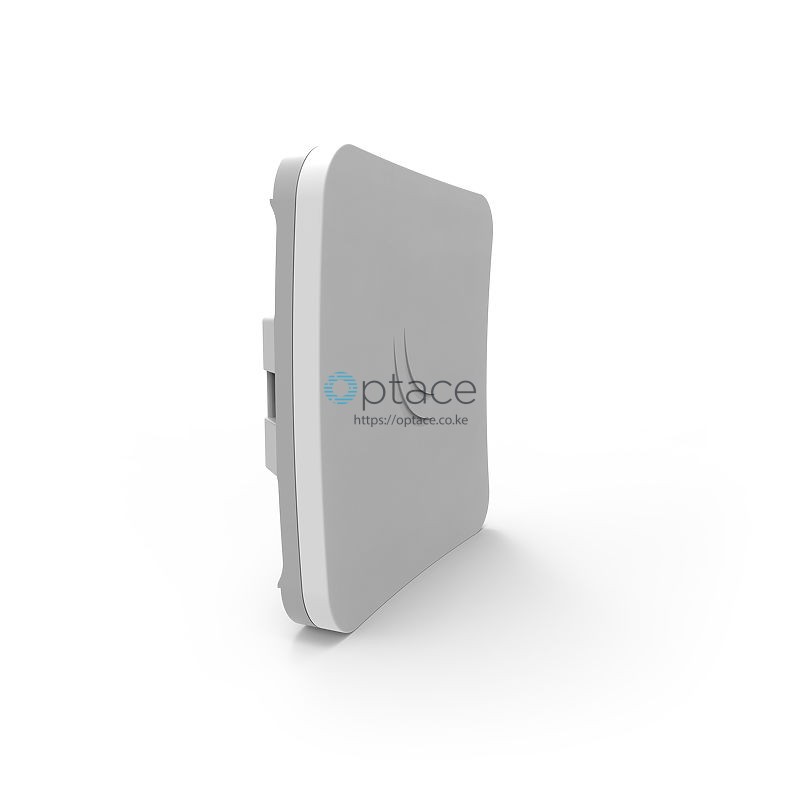

MikroTik SXTsq 5 High Power | 16dBi, 5GHz Integrated CPE/Backbone
The SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq 5 retains a 16 dBi antenna like the SXT 5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner. Higher TX power allows to reach longer distances than SXTsq Lite 5.
Specifications
| Details |
| Product code |
RBSXTsq5HPnD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
129 x 129 x 34 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-28 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
7 W |
Wireless
| Details |
| Antenna gain dBi for 5 GHz |
16 |
| Wireless 5 GHz standards |
802.11a/n |
| Wi-Fi generation |
4 |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz chip model |
AR9344 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
28 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
28 |
-96 |
| MCS7 |
24 |
-75 |
