40,000 KES Excl VAT

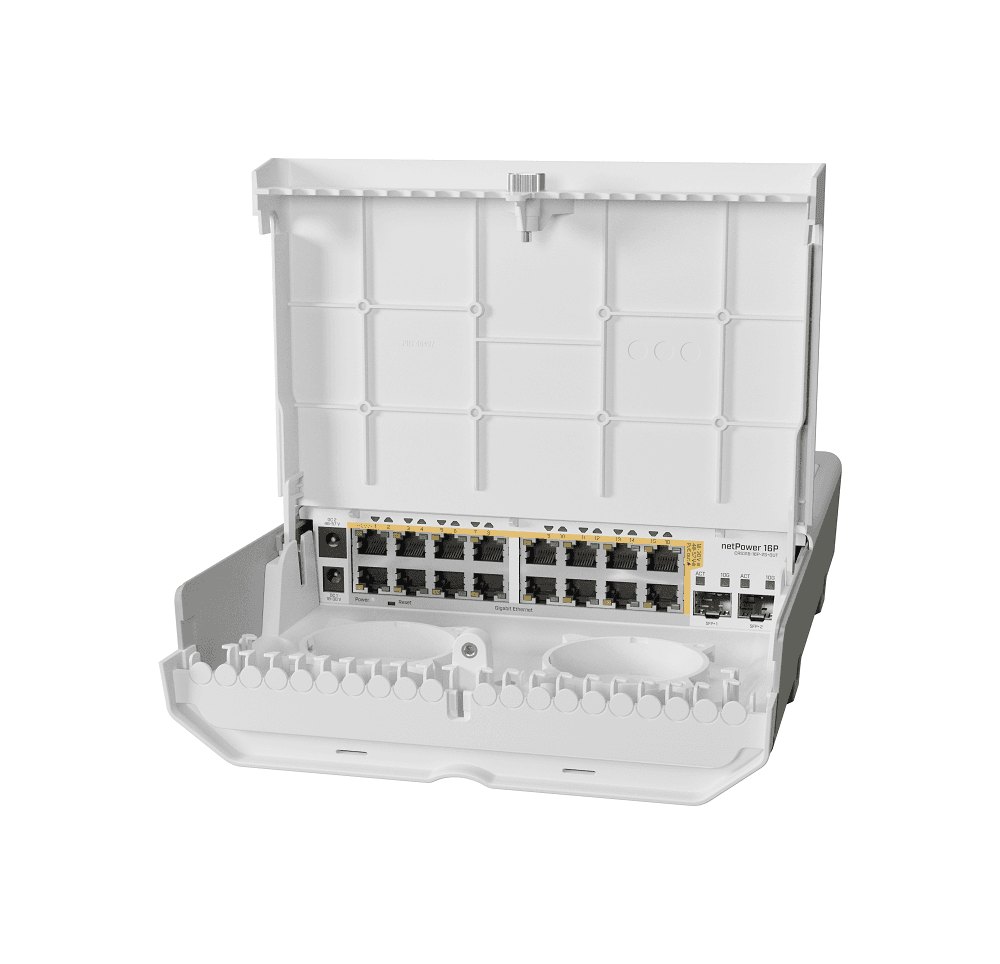

MikroTik netPower 16p CRS318-16P-2S+OUT

An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

The device itself does not have an onboard voltage converter. You need a 24V PSU to have 24V PoE out and/or a 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24 HPOW, 48 POW, and 48V2A96W

Specifications

Details
Product codeCRS318-16P-2S+OUT
ArchitectureARM 32bit
CPU98DX226S
CPU core count1
CPU nominal frequency800 MHz
Switch chip model98DX226S
Dimensions303 x 212 x 78 mm
RouterOS license5
Operating SystemRouterOS / SwitchOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C

Powering

Details
Number of DC inputs2 (DC jack)
DC jack input Voltage18-30 V / 48-57 V
Max power consumption316 W

Max power consumption without

attachments

16 W
Cooling typePassive

PoE-out

Details
PoE-out portsEther1-Ether16
PoE out802.3af/at

Max out per port output

(input 18-30 V)

1.1 A

Max out per port output

(input 30-57 V)

0.6 A
Max total out (A)2.8A (18V-30V) & 1.4A (48V-57V) x2 A

Ethernet

Details
10/100/1000 Ethernet ports16

Number of 1G Ethernet ports with

PoE out

16

Fiber

Details
SFP+ ports2
