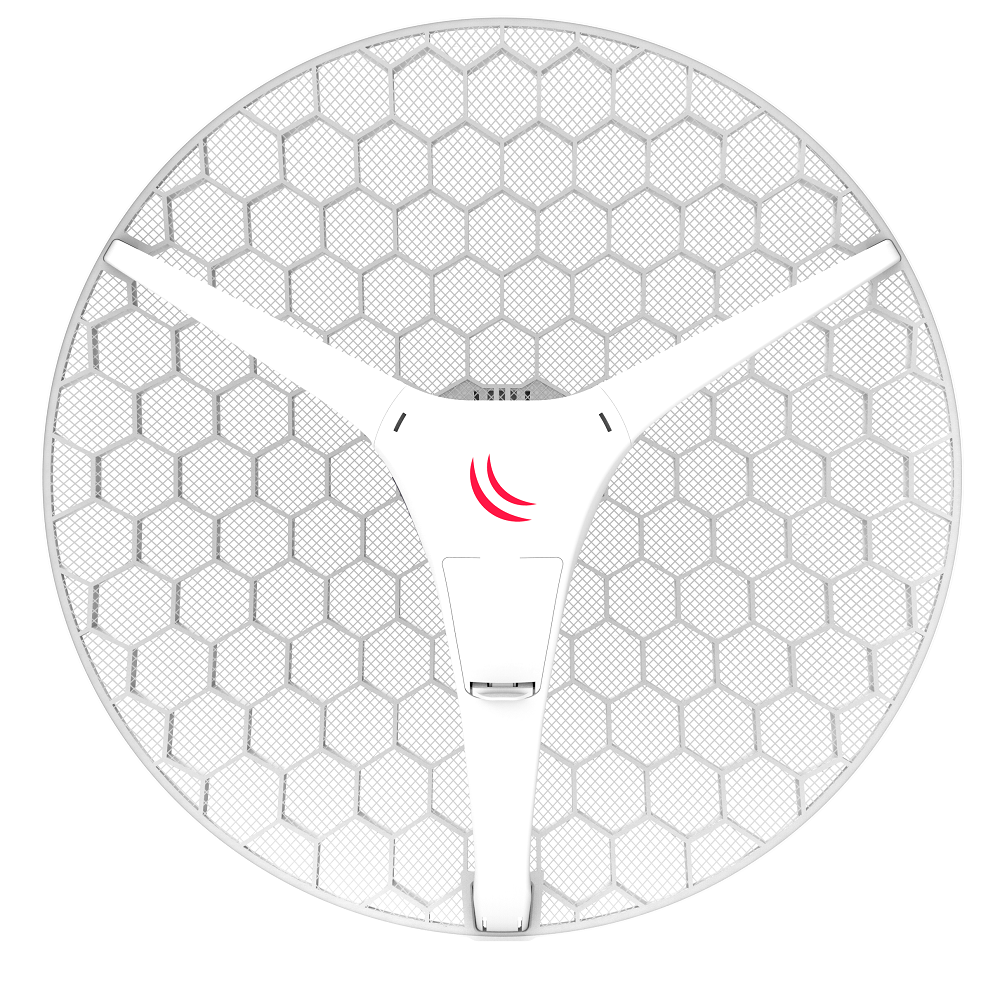

MikroTik LHG XL HP5 (RBLHG-5HPnD-XL) - 27dBi 5GHz CPE/PtP Integrated Antenna

MikroTik LHG XL HP5 Overview

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

MikroTik LHG XL HP5 Specifications

Details
Product code	RBLHG-5HPnD-XL
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	Ø 550 x 245 mm;
License level	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Suggested price	$79.00

Powering

Details
PoE in	Passive PoE
PoE in input Voltage	10-28 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	7 W

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	27
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4
