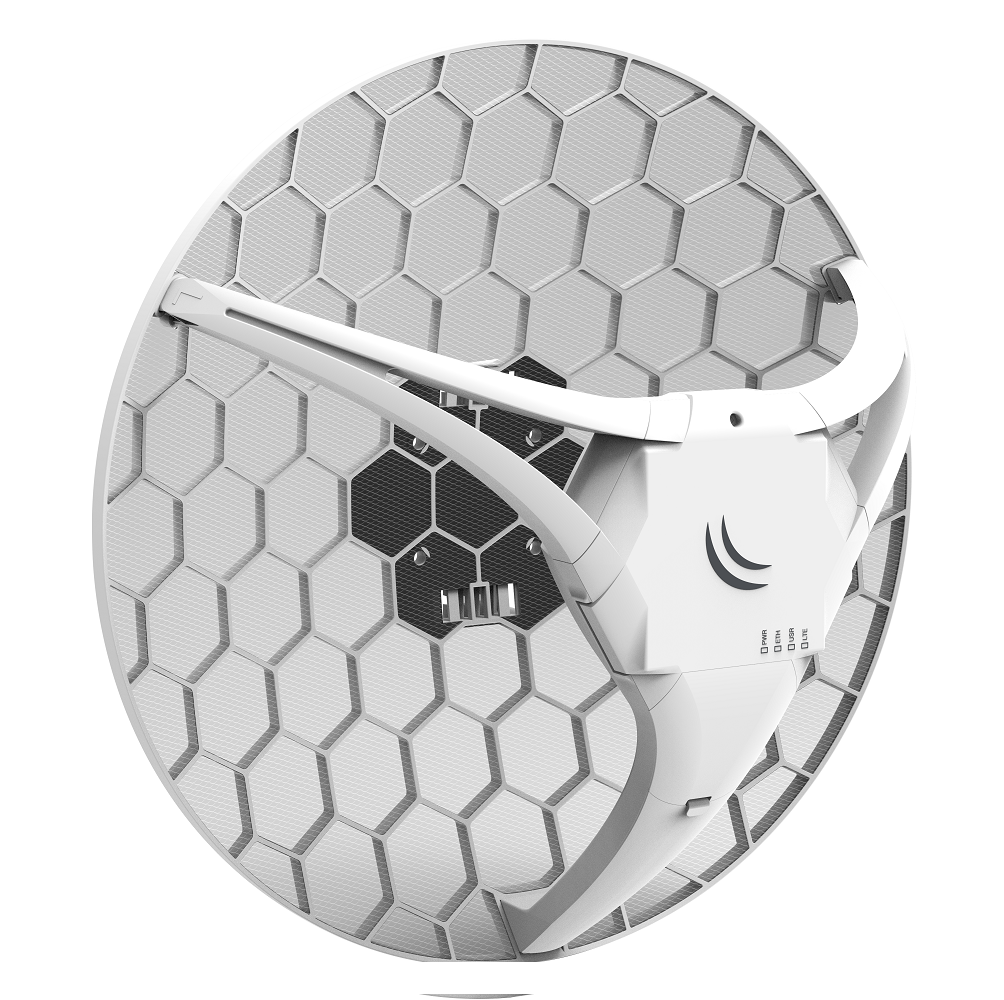

MikroTik LHG LTE Kit - LHG 2G/3G/4G/LTE High gain 17dBI CPE for very remote areas, International bands

The MikroTik LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specifications

Details
Product code	RBLHGR&R11e-LTE
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	391 x 391 x 227 mm
License level	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 60°C

Powering

Details
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	6 W

Mobile

Details
2G Category	Class12
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz)
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
