152,800 KES
Excl VAT

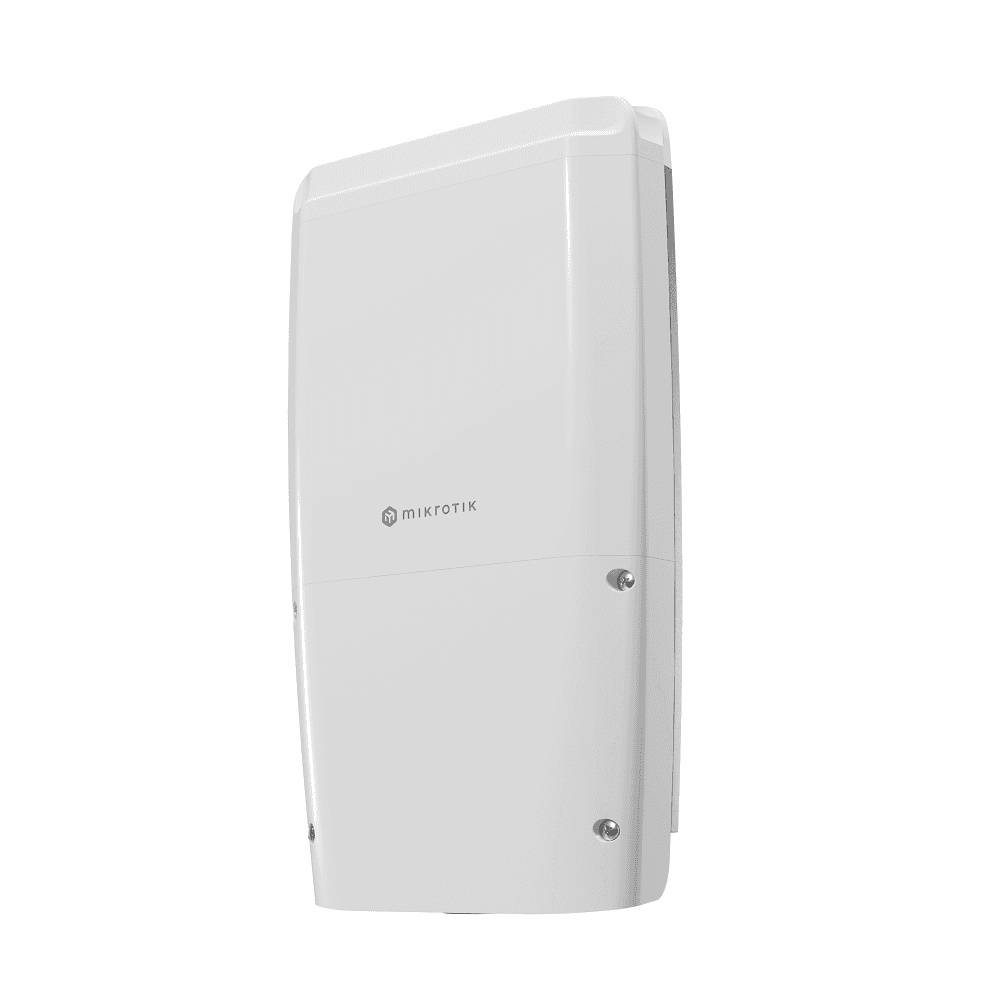

MikroTik CRS504-4XQ-OUT

Affordable, compact, energy-efficient 100 Gbps networking anytime, ANYWHERE! IP66 weatherproof enclosure, 4x 100 Gigabit ports, multiple powering options.

At the core of this masterpiece, there are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices.

When it comes to outdoor event planning, you can never be too prepared. So having multiple powering options is a must! And CRS504-4XQ-OUT has got you covered: there’s a standard DC jack, a 2-pin terminal, and 802.3bt PoE-in.


 We’ve also kept the good old management and console ports – to help you deal with any unexpected situations.

Performance-wise, CRS504-4XQ-OUT is a real workhorse that can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading!

Specifications

Details
Product codeCRS504-4XQ-OUT
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip model98DX4310
RouterOS license5
Operating SystemRouterOS v7
Size of RAM128 MB
Storage size32 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C


Powering

Details
Number of DC inputs3 (PoE-IN, 2-pin terminal, DC jack)
DC jack input Voltage36-57 V
2-pin terminal input Voltage36-57 V
Max power consumption44 W

Max power consumption without

attachments

25 W
Cooling typePassive
PoE in802.3 bt
PoE in input Voltage43-57 V

Ethernet

Details
10/100 Ethernet ports1

Fiber

Details
Number of 100G QSFP28 ports4

Peripherals

Details
Serial console portRJ45
