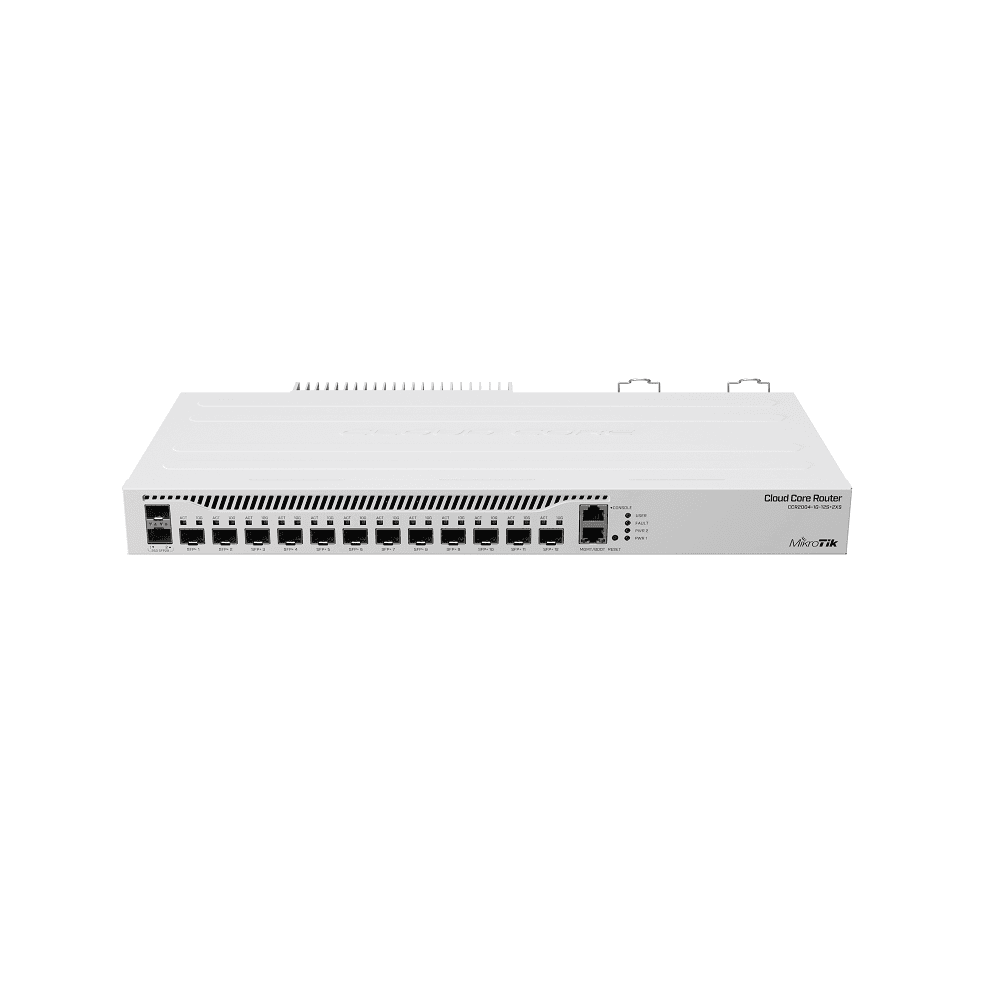

MikroTik CCR2004-1G-12S+2XS Cloud Core Router Overview

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

MikroTik CCR2004-1G-12S+2XS Specifications

Details
Product code	CCR2004-1G-12S+2XS
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1700 MHz
Dimensions	443 x 224 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-20°C to 60°C
MTBF	Approximately 200'000 hours at 25C
