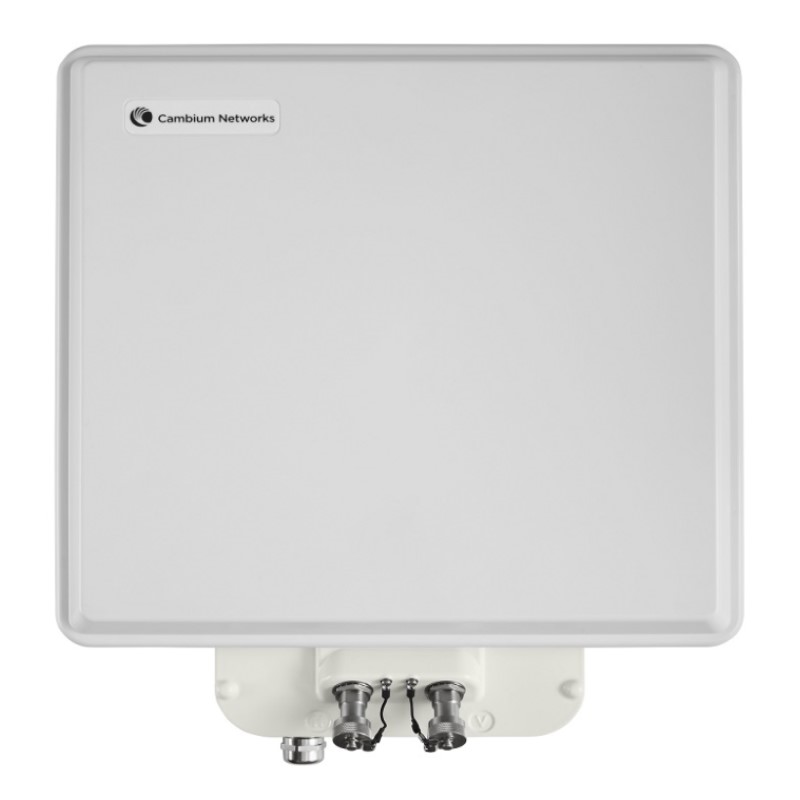

Cambium Networks PTP 670 Connectorized END with AC+DC Enhanced Supply (C050067H030C) (datasheet)

PTP 670 systems provide 4.9 to 6.05 GHz, multi-band flexibility in a single radio and operate in channel sizes from 5 to 45 MHz.

Quick Look:

RF Bands - Wide-band operation 4.9 to 6.05 GHz (Allowable frequencies and bands are dictated by individual country regulations)

Channel Sizes - 5, 10, 15, 20, 30, 40, and 45 MHz channels Channel sizes depend on individual country regulations

Spectral Efficiency - 10 bps/Hz maximum

Channel Selection - By Dynamic Spectrum Optimization or manual intervention Automatic selection on start-up and continual self-optimization to avoid interference

Maximum Transmit Power - Up to 27 dBm

System Gain - Up to 164 dB with Integrated antenna

Antenna - Connectorized: operate with a selection of separately-purchased single and dual polarity antennas through 2 x N-type female connectors

Range - Up to 155 miles (250 km)

Security - FIPS-197 compliant 128/256-bit AES Encryption (optional) HTTPS and SNMPv3 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management
